중온 Portable Dry Block

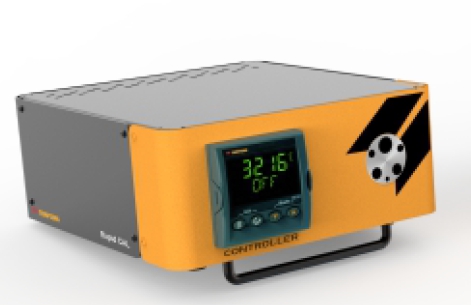

중온 Portable Dry Block

CAL FAST 350 (50 ~ 350°C)
  • 중온 Portable Dry Block
  • Temp range : 50 ~ 350°C
  • Instrument Weight : 1.5 Kg (without packing)
  • Power Requirement : 230 VAC, 500 W
  • Computer Interface: RS - 232 (Optional)
  • Time to Reach Max. Temperature : 10 Mins
  • Lightweight & portable
견적문의 Data sheet

제품 사양

Model CAL FAST 350
Temp Range 50 ~ 350°C
Stability (15 min) ±0.05°C
Radial Uniformity ±0.5°C
Temperature Resolution 0.1°C
Time to Reach Max. Temp 10 Mins
Time to Reach Mini Temp 15 Mins (Max to 100°C)
Controlling Sensor RTD (Pt 100)
Method of Control Digital self tuned PID Controller
Insert Construction Dia 27 x 120 mm long with 3 holes of 6.5 x100 mm insertion depth
Computer Interface RS - 232 (Optional)


제품 상세 설명

  • Lightweight & portable.
  • Accuracy and performance.
  • Accredited calibration.
